126.1 How to use ActiveMQ Outbound Adapter with CSV Payload?

ActiveMQ adapter is used to send messages. Messages are just what they sound like, payloads of data that can be shipped between various systems. These payloads can have headers and properties associated with them This adapter supports 3 types of data formats i.e. CSV, XML and JSON.

UseCase: Agent ActiveMQ Adapter for CSV payload. #

Objective: Test ActiveMQ Inbound adapter for CSV Format #

Pre-requiste: #

Create Integration.

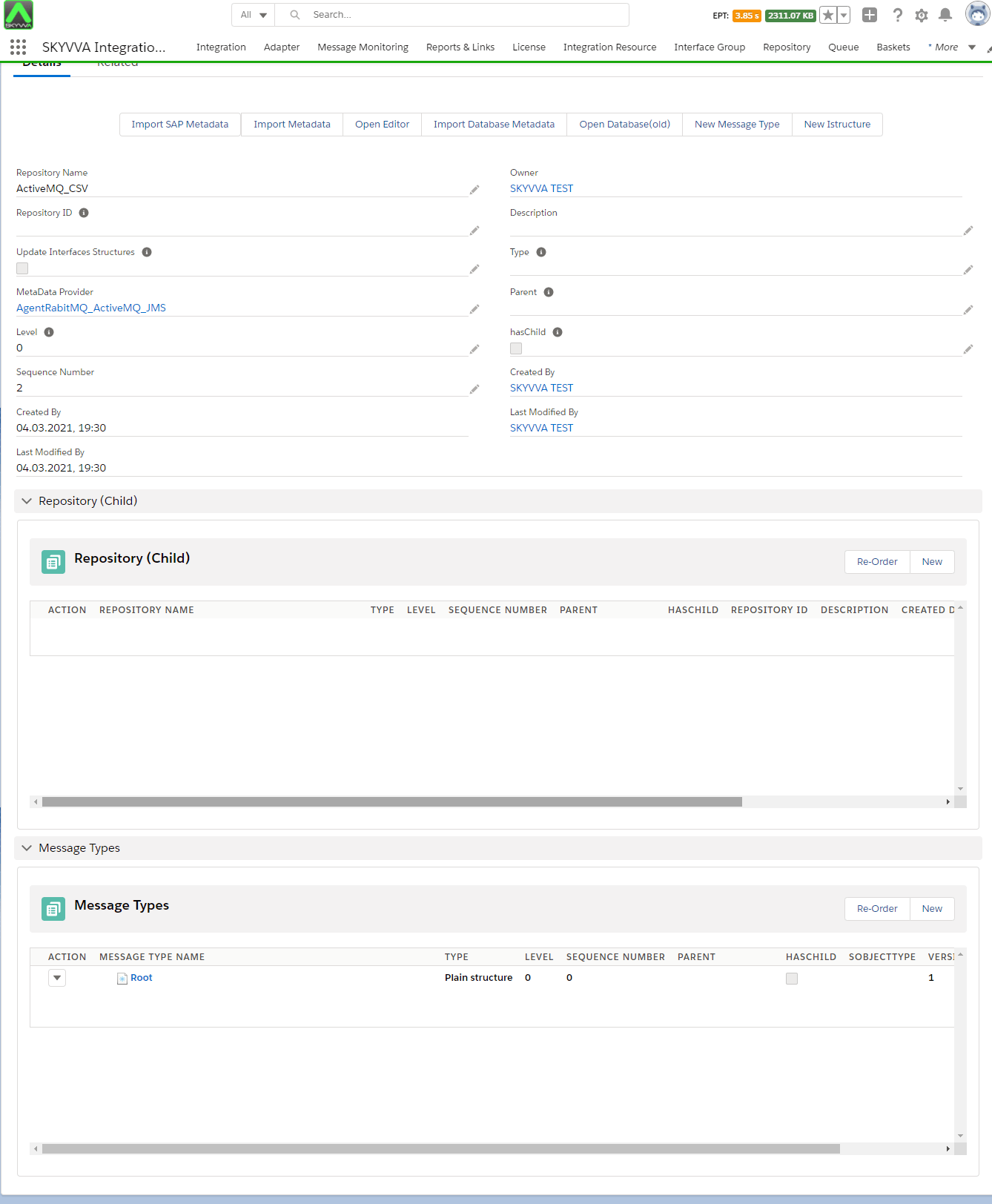

Create Metadata Provider, IStructure Repository and Create Flat Message Type.

Metadata Provider:Agent_ActiveMQ_RabbitMQ_JMS_Metadata
IStructure Repository: ACtiveMQCSV
Message Type:Root

Step1:To Create Agent ActiveMQ CSV Inbound Adapter:

Go to Integration (Example: Agent_new _adapter)
Click on link AGENT Control Board.
Go to Adapter Tab and Click on New Button.

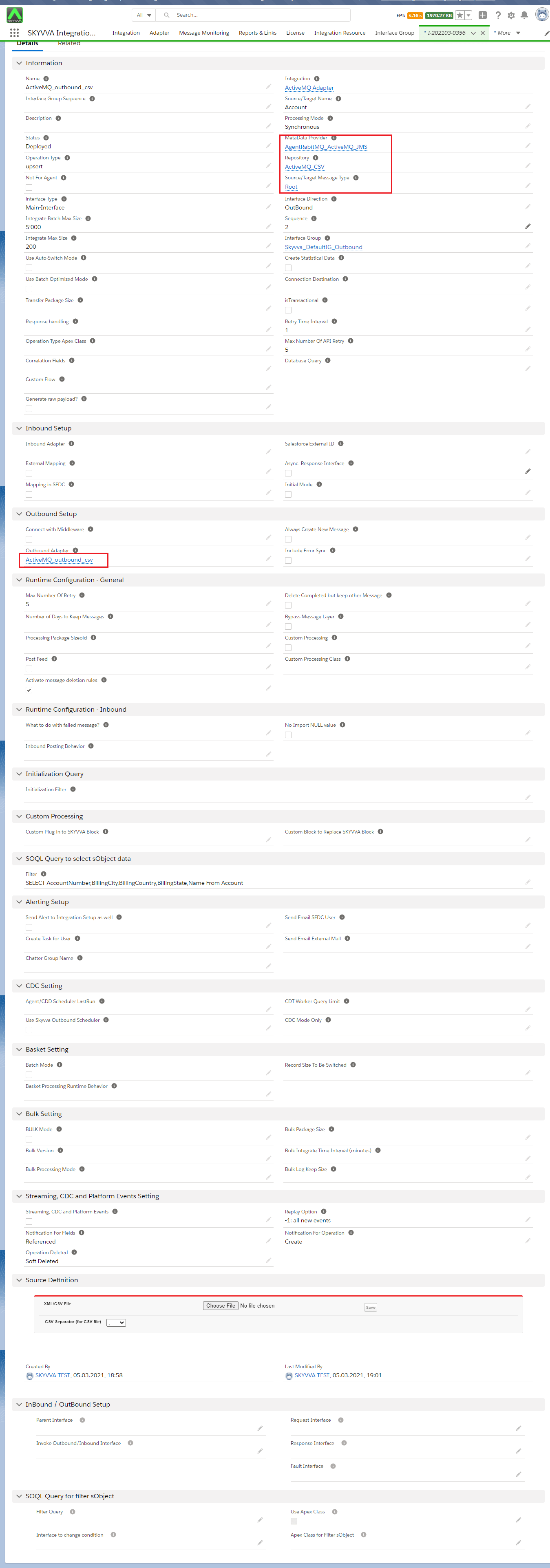

Configure Agent RabbitMQ CSV Inbound Adapter: you need to enter adapter properties base on system requirement and Select Connection Destination (Example:Agent LINUX).

Step3: Create Integration and Inbound Interface:

Inbound Interface: ActiveMQ_Intbound_xml
Metadata: AgentRabitMQ_ActiveMQ_JMSCSV
Respository:RAbitMQCSV
MessageType:Root
Adapter: ACtiveMQ_outbound_csv

Step4: Do mapping

Step5: Go to Developer console and callout:
Callout:
skyvvasolutions.CallOutControl c = new skyvvasolutions.CallOutControl();
c.returnJSONComplete=true;
c.actionDoIntegrate=false;
c.isCreateMessage=true;
String[] ids= new String[]{‘0011X00000nMzy4QAC’,’0011X00000nMy8jQAC’};
List<skyvvasolutions.CalloutResponse> result = skyvvasolutions.Iservices.invokeCalloutV3(‘ActiveMQ Adapter’,’ActiveMQ_outbound_csv’,ids,’SYNC’,c);

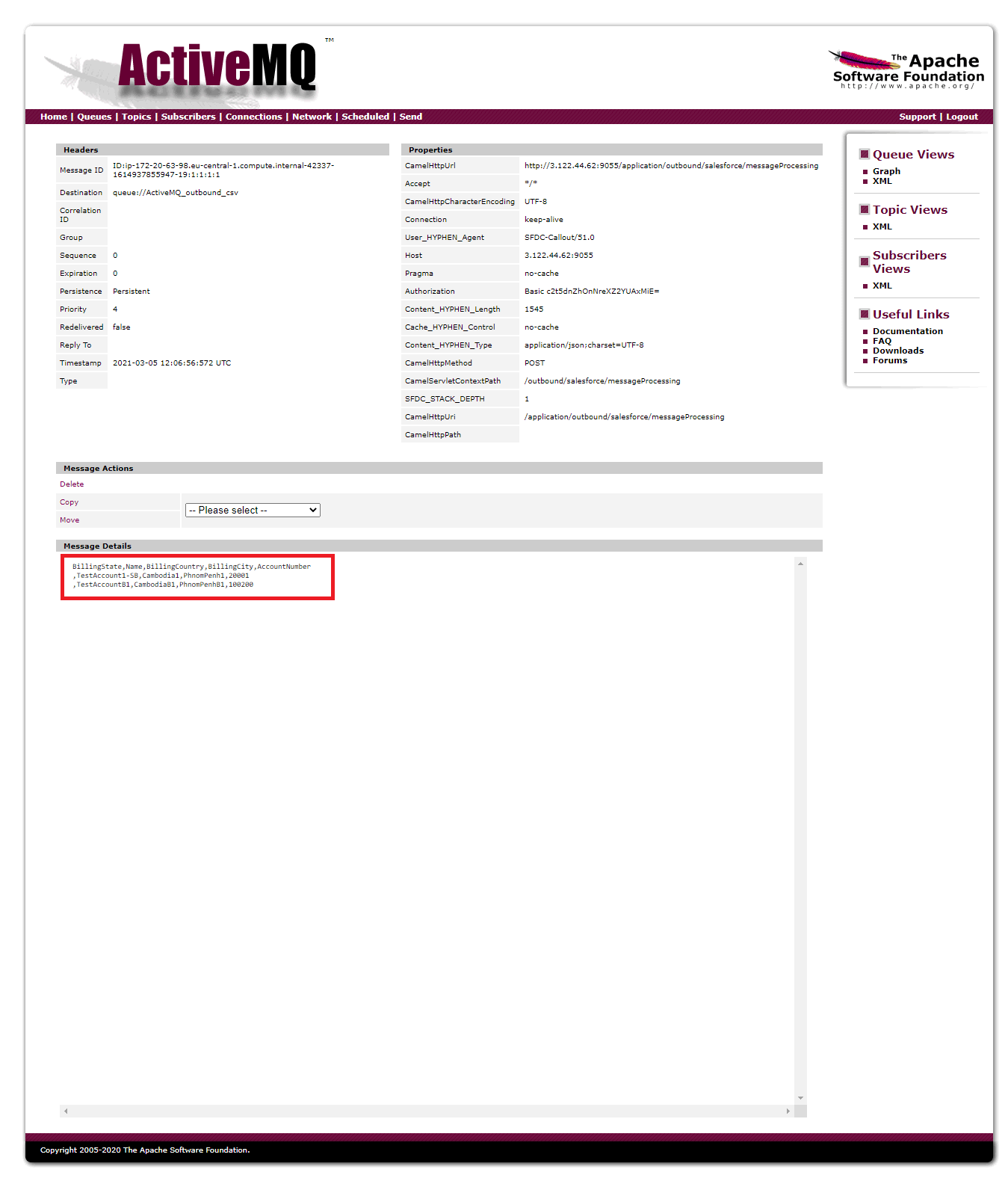

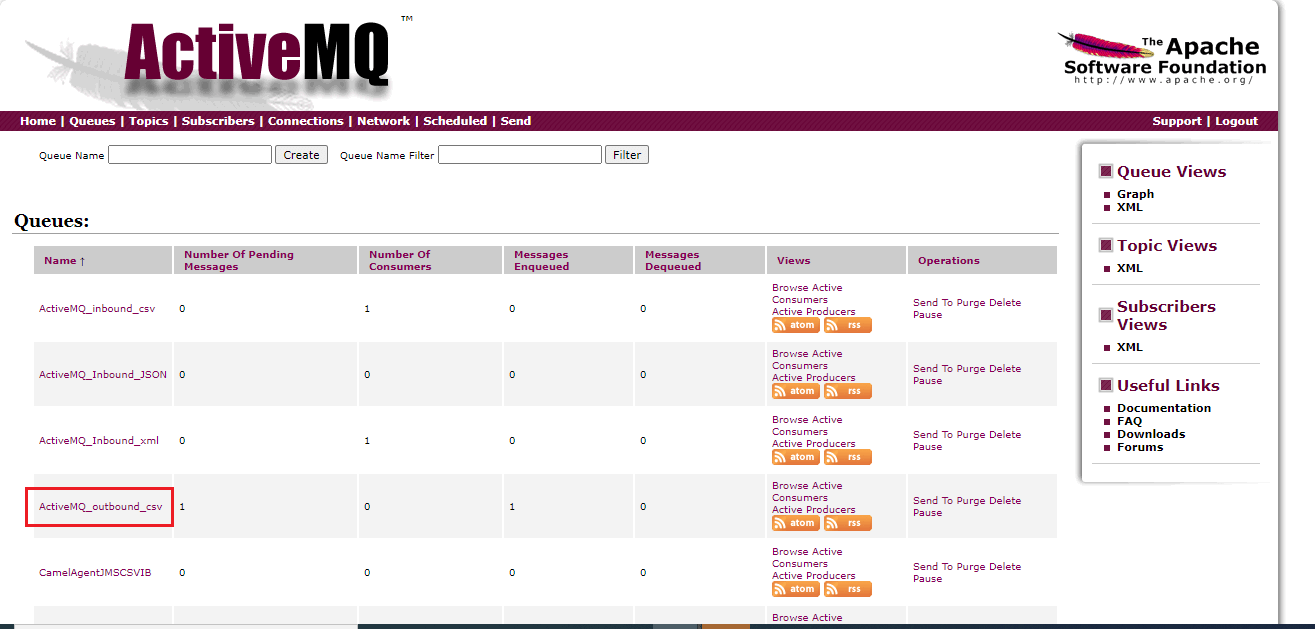

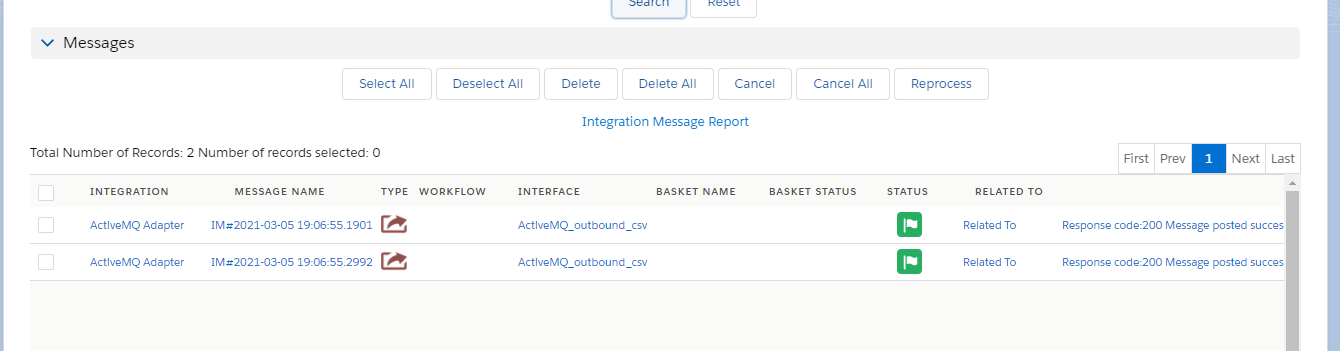

Step5: Check result on Message Monitoring:
